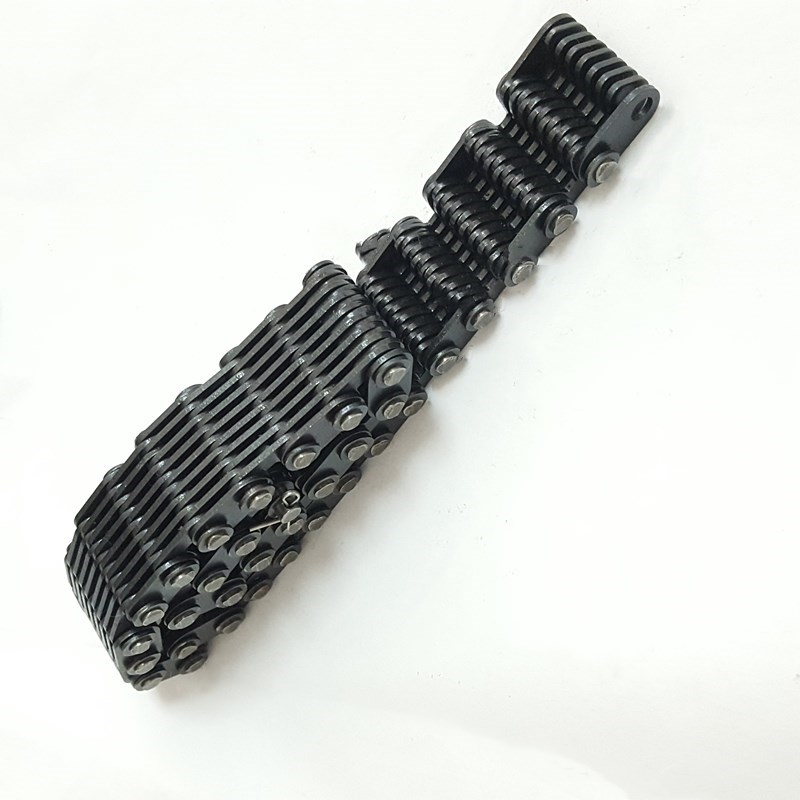

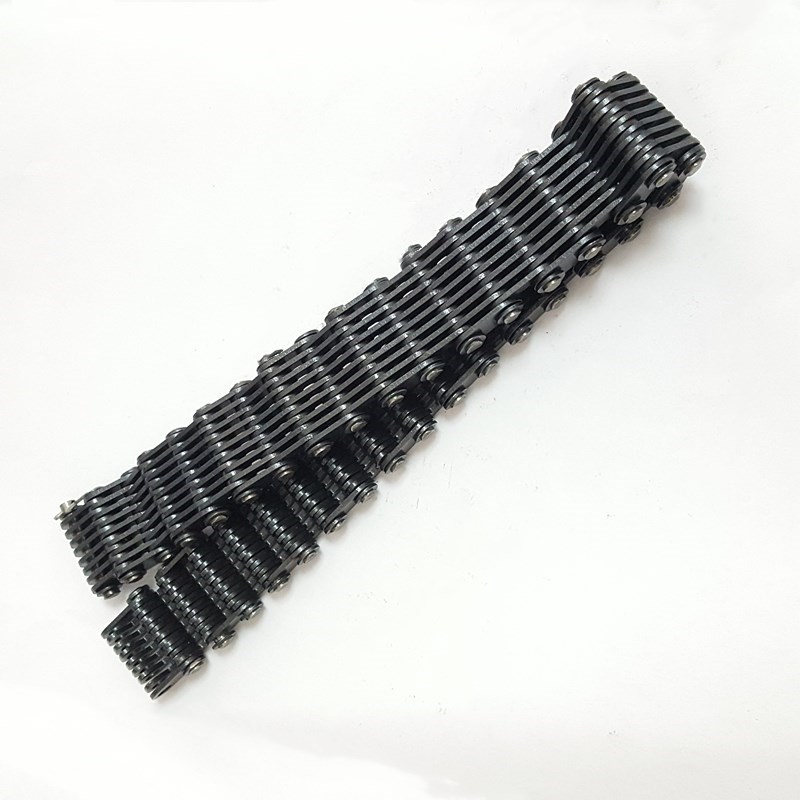

Silent conveying chains provide a smooth,durable,flat conveying surface that operates with less vibration and velocity variation than other conveying products.Chains are manufactured from hardened steel components,making them long lasting and tolerant of elevated temperatures.They are available in a variety of standard widths and constructions or can be easily buit to suit a specific application. Linked and pin with a special treatment ,So it has highly wearable and strength to pull and can provide more stable use effects and long usage life,all of the of these products as your demand.

The width of silent chain can from 50mm to 500mm.

Two pin silent chain can provide better use effects and longer usage life than single pin.And with protection plate can offer more safety protection for the product.The chain gear tooth chain Xiangjie: also called silent chain, the chain is a special heat treatment process, and solves the problem that the domestic heat
Do not pass the processing problem, chain plate adopts special steel chain forging and heat treatment, the thickness of 0.2mm, hard, soft, this
The treatment process, to solve the high hardness, hardness of small fragments. Processing, do not wear problems, the use of Zhou Qishou
Life greatly extended (under normal use 3-5 years) according to the central distance of two kinds: 12.7mm, 25.4mm.
Application: the tooth chain has generally matched with the ranks of machine, bottle conveying machine manufacturers.
Detection of the tooth chain: tooth chain we produce have been running for 24 hours in the bottle conveying machine, to be qualified, only

You can pack the factory.
Toothed chain is an important mechanical basis for a wide range of applications, mainly used in high speed, heavy load, low noise, large center distance conditions, the transmission performance is better than that of tooth belt, gear and roller drive, to become a large number of industries preferred form of transmission, can be divided into internal meshing gear the chain meshing form, outer meshing silent chain and the inner and outer meshing silent chain, the inside and outside the compound meshing noise minimum, is the most widely used.
Silent chain (gear chain drive) is an efficient, stable, drive economy. Its transmission speed and capacity are more than the chain belt and other types of silent chain. (toothed chain transmission) of low noise, small vibration, high transmission efficiency of more than 99%. The standard of silent chain chain and sprocket variety, so silent chain drive collocation is flexible, which can meet the different needs of different conditions
The chain shape of silent chain, in order to reduce the stress concentration degree, prolong the fatigue life, enhance the tensile strength of the chain. Stamping technology innovation bring pressure area each link can increase the bearing area. That links at reduced pressure, greatly reduce the chain in the process of using all stretched rate. The link is through shot blasting treatment to increase the fatigue strength, and surface consistent effect.
Silent chain and sprocket is designed to conform to the ASME standard profile using.RP series SC series with the transmission ability of silent chain two times, it can transmit more than 35 meters per second speed and more than 1800kW. When you need to load in the narrow space of high-speed transmission of high load when RP series of silent chain the transmission system is often the transmission type often used.
